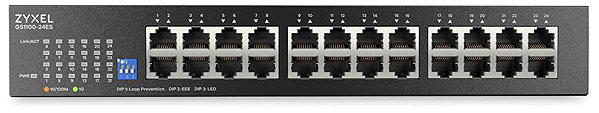

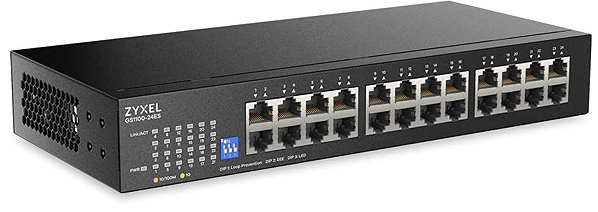

Zyxel GS1100-24ES
Zyxel GS1100-24ES
A switch is a functional network component that connects individual devices and other network elements. It is suitable for controlling network traffic. The Zyxel GS1100-24ES is made to be mounted in a rack. This type features a switching capacity of 384 Gb/s. The Switch is equipped with 24 × RJ-45 ports that provide connection with network elements. The switch features technology solutions enabling data transfer with a speed of up to 1000 Mbit/s. The switch dimensions are 280 × 126 × 44mm. The switch weighs 1020g.
Key Features of the Zyxel GS1100-24ES Switch
- For connecting end devices and other nodes
- 384 Gb/s switching capacity
- Offers 24 × RJ-45 ports
- ZyXEL switch is made for rack installation
Whole description
Specifications
Type
Switch type
Unmanaged
Design
Rack
Use
Home, Company
Functions
Functions
Auto-negotiation, Plug and play
Switching layer
L2
Ports
RJ-45
24 ×
10/100Base-T
24
10/100/1000Base-T
24
Number of LAN ports
Number of LAN ports with 100 Mbit speed
24
Number of LAN ports with 1 Gbit speed
24
Features
Power Supply
From the network
Speed
Switching capacity
384 Gb/s
Packet capacity (64B packets, in million of packets)
35.7 Mpps
Dimensions
Width
280 mm
Height
44 mm
Depth
126 mm
Material
Body material
Metal
Operating temperature
Maximum operating temperature
40 °C
Weight
Weight
1,020 g
All parameters
| Code: | Zyxel26006 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
