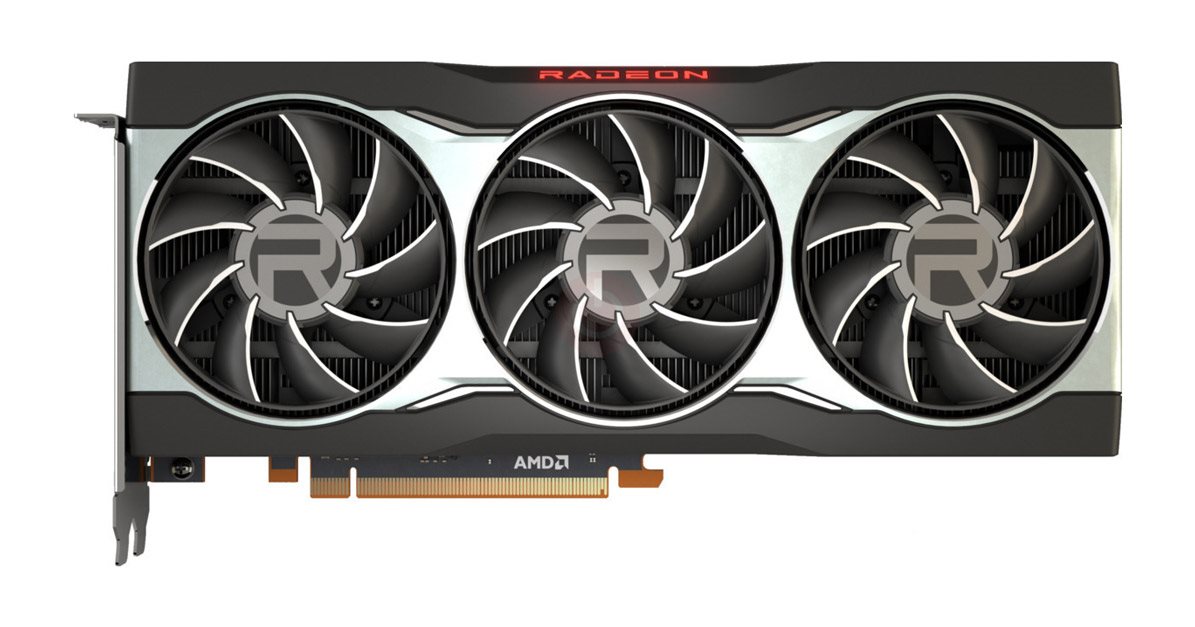

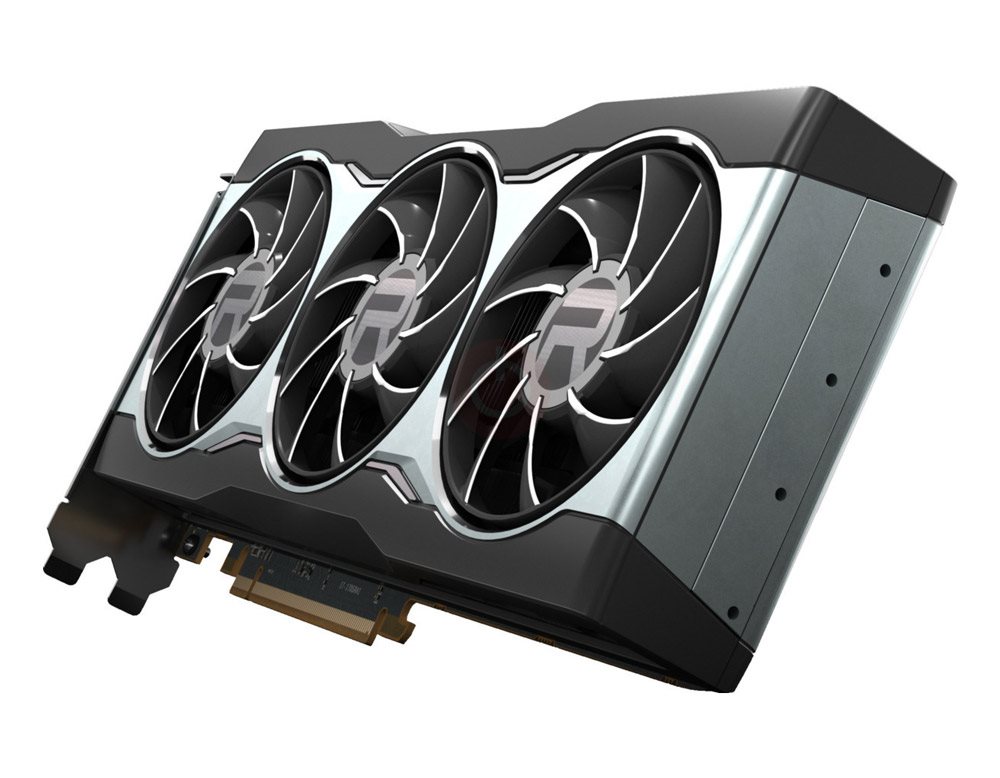

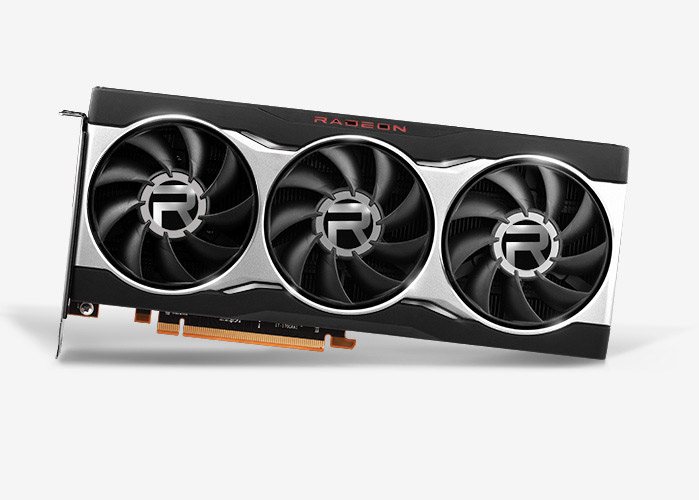

SAPPHIRE AMD Radeon RX 6800 16G

Product accessories
Manufacturer website

SAPPHIRE AMD Radeon RX 6800 16G

Planning to buy a powerful gaming graphics card for the best experience when playing new AAA games? The SAPPHIRE AMD Radeon RX 6800 16G graphics card with 16 GB of RAM is exactly what you need, complete with a 16000 MHz clock speed. With this amount of RAM, 256Bit bus and a core speed of 1700 MHz, you will always get an amazing experience, regardless of whether you are playing the latest games or working with graphics software. for monitor connection. The manufacturer chose the DisplayPort 1,4, HDMI 2,1 and USB-C connection type. The active cooler guarantees very low temperatures even under load.

SAPPHIRE AMD Radeon RX 6800 16G Gaming Graphics Card Key Features

  • Has a RX 6800 graphics chip with a 7 nm production technology
  • Designed for running graphically intensive games
  • Thermal design power 250 W
  • Requires a PSU with a performance of at least 750 W

Active cooling technology is widely used chiefly because it's a good way to reduce the temperature of the components. The Dual-slot cooler includes 3 fans and matches its cooling output to the current processing load.

16 GB GDDR6 RAM

The SAPPHIRE GPU GDDR6 type RAM is the latest successor to GDDR5. Unlike GDDR5, it delivers greater capacity and 2× better performance. In the upcoming months and years, this technology is expected to become the real mainstream among the GPU memory options.

Specifications

Chip

Chip manufacturer AMD Radeon
Model designation RX 6800
Graphics processor Navi 21
Chip architecture RDNA 2.0
Number of stream processors 3,840×
Production technology 7 nm

Performance & usage

Use Game playing

Memory

Memory type GDDR6
Bus width 256-Bit

Frequency

Core frequency 1,700 MHz
Core clock speed (Boost clock) 2,105 MHz
Memory frequency 16,000 MHz (16 GHz)
Effective memory clock (bandwidth) 16 Gbps

Interface

PC connection PCI Express x16 4.0
Monitor connection DisplayPort 1.4, HDMI 2.1, USB-C

Technology

DirectX version 12 Ultimate

Cooling system

Cooling type Active
Cooling size Dual-slot
number of fans 3 ×

Consumption

TDP 250 W

Backlight

Other features RGB backlight
Code:  ELrx68a1
