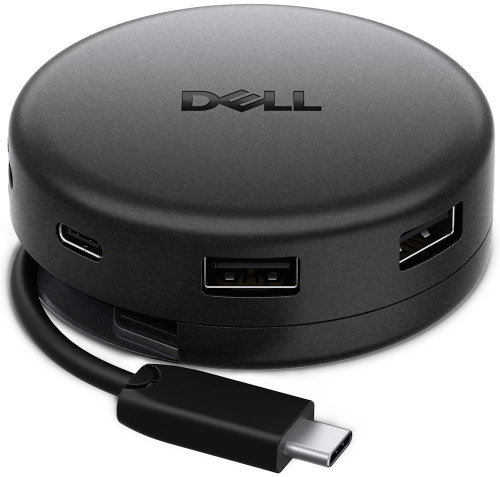

The Dell Pro 7-in-1 Travel Hub DA326 USB-C is used to expand the connectivity of portable computers and power them through a single USB-C interface. This round device integrates a total of seven interfaces for connecting peripherals, monitors and a network cable. The integrated 2.48cm connecting cable uses a retractable mechanism that makes it easy to carry and protects the connector from damage. The black plastic construction contains 26.6% recycled materials and has a total weight of 93.5g. The circular body, with a diameter of 7.1cm and a height of 2.62cm, is complemented by a retractable cable that is 65% longer than the previous generation.
Key features of the Dell Pro 7-in-1 Travel Hub DA326 USB-C docking station
- The station offers a total of seven interfaces in one body
- The integrated cable is 2.48m long and is retractable
- The USB-C power output is 100W
- The video outputs support a resolution of 6016 × 3384 at 60Hz
- The network port has a transfer speed of up to 2,500Mbit/s
- The construction contains 26.6% recycled materials
- The total weight of the device is only 93.5g
Power performance
The hub supports Power Delivery Pass-through technology with up to 100W of power for compatible Dell systems with a 130W power input. For laptops from other brands, it provides up to 85W of power when using a 100W adapter. The Sync & Charge technology allows for simultaneous laptop charging and data transfer via the USB-C interface. The hub's operating power consumption is 7.5W.
Connecting monitors
The graphics outputs on the body of the station are represented by one HDMI 2.1 port and one DisplayPort 1.4 port. The station supports connecting up to two monitors simultaneously to extend your desktop. The resolution is 6016 × 3384 pixels at a refresh rate of 60Hz. The ports support 6K resolution display with high detail sharpness. The alternate mode of the USB-C to DisplayPort transfers the video signal to an external display device. Users can also connect monitors with a resolution of 3840 × 2160 pixels.
Data transfers
The device includes a total of four USB ports for connecting accessories. The setup includes one USB-C 3.2 Gen 2 port and one multi-purpose USB-C port for data, video and power. Two USB-A standard ports add connectivity for older peripherals, with one supporting the 3.2 Gen 1 standard and the other the 3.2 Gen 2 standard. The data transfer speed is 1.25GB/s. There is no integrated memory card reader or microphone input on the body of this hub.
Stable network connection
A wired connection to the local network is provided by one RJ-45 port with support for 2.5 Gigabit Ethernet technology. The network data transfer speed is up to 2,500Mbit/s. The interface supports advanced management features like MAC Address Pass-through, PXE Boot and Wake-on-LAN for administration in a corporate environment. The network connection works via a standard ethernet cable and does not require the installation of additional software for the network card.
Supported systems and construction
The hub works on the Plug and Play principle for immediate functionality right after plugging it in, without the need to install drivers. The manufacturer declares support for Windows 11, macOS, iPadOS, and ChromeOS operating systems. The device also works seamlessly with the Linux distributions Ubuntu and Red Hat Enterprise Linux. Broad cross-platform compatibility facilitates deployment in diverse office environments with various types of company computers. The round design in Dell Magnetite colour has a diameter of 7.1cm and a height of 2.62cm. The user can wind the integrated 2.48m USB-C cable directly into the body of the station. The retractable mechanism protects the cable from mechanical damage and kinking during transport. The total weight of the device is 93.5g. The compact plastic chassis makes it easy to transport in a laptop bag.
Package contents:
Dell Pro 7-in-1 Travel Hub DA326 USB-C docking station, connecting cable
Ports:
2× USB-C (1× Data/Video/Power, 1× USB-C 3.2 Gen 2), 2× USB-A (1× 3.2 Gen 2, 1× 3.2 Gen 1), 1× HDMI 2.1, 1× DisplayPort 1.4, 1× RJ-45
Maximum power for a laptop:
100W
Maximum resolution:
6016 × 3384 pixels
Maximum LAN speed:
2.5Gb/s
Cable length:
2.48m
Specifications
Laptop power port
Most common ports
Data ports - Number and standards
Power ports for electrical devices
Graphics ports - Number and standards
Network ports
Features
Packaging
Compatibility
Dimensions and weight
Charging // EU Directive
