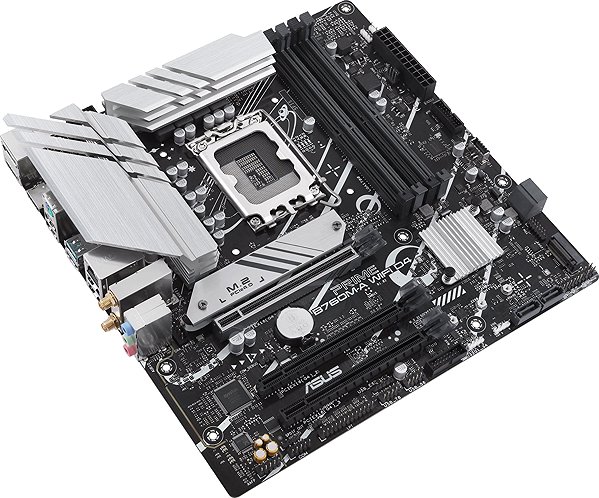

ASUS PRIME B760M-A WIFI D4
ASUS PRIME B760M-A WIFI D4
This ASUS motherboard is based on the Intel B760 chipset, and it uses the Intel 1700 socket to accommodate the CPU. As is the standard, it is also equipped with a sound card which handles 8,0 channels. You will be able to use its network connection module with the very practical Wi-Fi connection support. It smartly combines compact dimensions with adequate connectors to create a great home PC setup. If you want to build a PC with this model, you will require a compatible mATX (Micro ATX) format computer case.
ASUS PRIME B760M-A WIFI D4 Motherboard Key Features
- Intel 1700 socket and Intel B760 chipset
- ASUS PRIME B760M-A WIFI D4 format: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR4 RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
ASUS PRIME B760M-A WIFI D4 Motherboard Connectivity
Computer RAM is something you obviously can't do without , so this ASUS motherboard is equipped with 4 RAM slots. You can use DDR4 type DIMM RAM. You can hook them up in dual-channel mode. It supports models with a clock speed of up to 5333 MHz.
ASUS PRIME B760M-A WIFI D4 Connectors
This motherboard supports 3 graphics cards with PCI Express 16x slots. The internal interface includes a total of 2 popular M.2 slots.
- The motherboard has a built-in Realtek 7.1 sound card
- External interfaces: Jack, PS/2, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.4
- Supported internal interfaces: COM header, LPT header, RGB LED Header, S/PDIF header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header, PCIe 4.0 x16, Serial ATA III and M.2 PCIe 4.0
- Maximum supported RAM module clock speed: 5333 MHz
- SATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
| Code: | ACb760pmawd4 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
