ASROCK B860M Pro-A WiFi
ASROCK B860M Pro-A WiFi

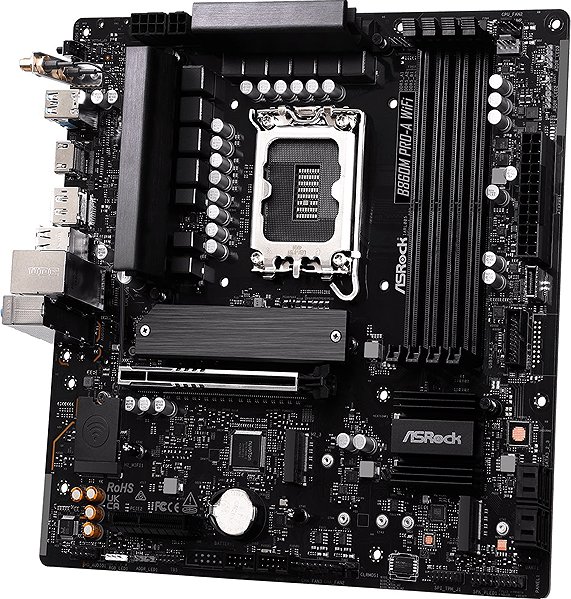

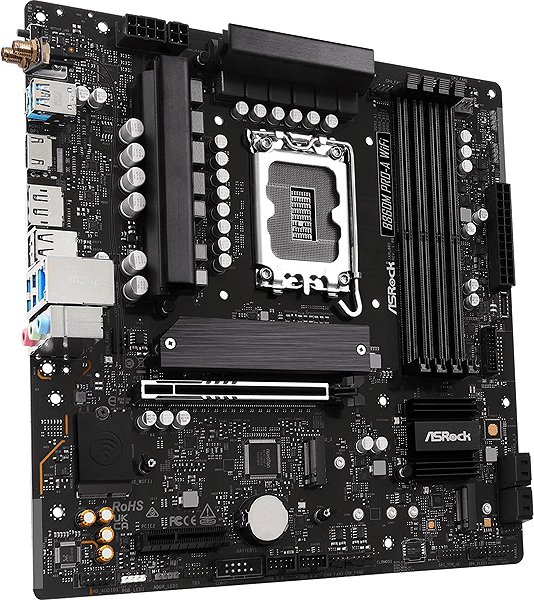

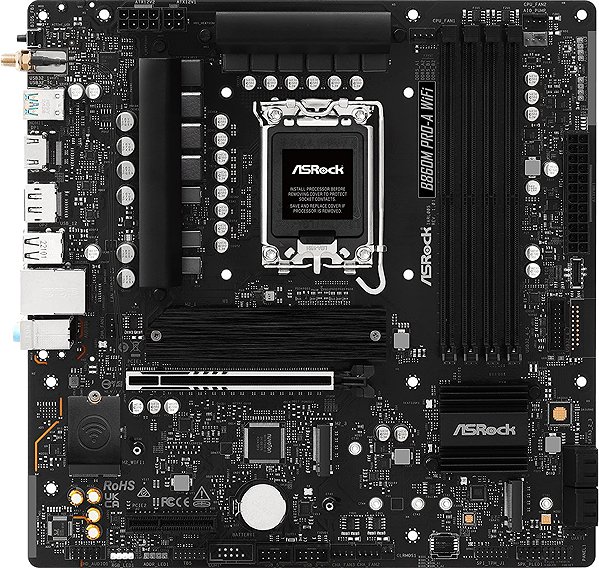

This ASROCK motherboard is built with the Intel B860 chipset, which has the Intel 1851 socket to accommodate the processor. As is usually the case, it also has a sound card for 8,0 channels. You can use the network connection module with the handy Wi-Fi support. It combines compact dimensions with adequate connectors to create a great home PC setup. If you want to build a PC with this model, you'll require a compatible mATX (Micro ATX) format computer case.
ASROCK B860M Pro-A WiFi Motherboard Key Features
- Intel 1851 socket and Intel B860 chipset
- ASROCK B860M Pro-A WiFi format: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
ASROCK B860M Pro-A WiFi Motherboard Connectivity
Computer RAM is something you obviously can't do without , so this ASROCK motherboard has a total of 4 RAM slots. You can pair it with DDR5 type DIMM operating memory. You can hook them up in dual-channel mode. This motherboard is compatible with models with a clock speed of up to 8666 MHz.
ASROCK B860M Pro-A WiFi Connectivity
This motherboard accommodates graphics cards with a PCI Express 16x slot. The internal interface includes a total of 3 popular M.2 connectors.
- The motherboard has an integrated Realtek ALC897 sound card

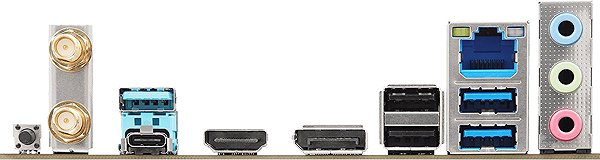

- External interfaces: Jack, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, HDMI 2.1 and DisplayPort 1.4
- Supported internal interfaces: COM header, RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4 and Serial ATA III
- Maximum supported RAM module clock speed: 8666 MHz
- SATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
| Code: | ASb860p8 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
