Shelly SSR Addon for Shelly Pill
Shelly SSR Addon for Shelly Pill

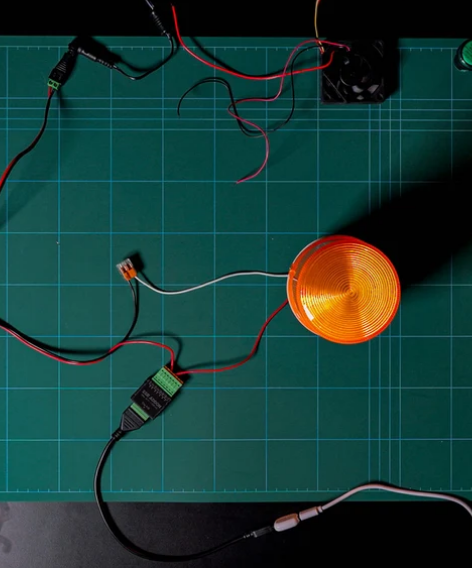

The Shelly SSR Addon for Shelly Pill module functions as a smart home accessory. The addon module is used to control two independent DC loads up to 30V and 300mA per channel. The device requires a five-terminal adapter to connect to the base unit. Users control two independent DC loads via the manufacturer's companion app, which is available in Czech, Slovak and English. The module integrates into an open system via a 2.4GHz WiFi wireless connection, and the entire system operates independently when connected to the mains.
Key Features of the Shelly SSR Addon for Shelly Pill Module
- The device contains two independent, galvanically isolated outputs
- The relay channels switch DC voltage up to 30V
- The module has one configurable digital input or output
- Power consumption is under 0.6W
- The device requires a five-terminal adapter for connection
- The entire device weighs just 12g
- The solid-state contacts operate without any mechanical elements
Dual-Channel Switching
The device contains two independent potential-free contacts, which are solid-state relay outputs. These outputs, labelled LOAD1 and LOAD2, operate without mechanical parts. The solid-state relays switch DC voltage up to 30V with a current of up to 300mA per channel. The galvanic isolation of the circuits increases the operational safety of the entire connection when switching different types of DC loads in a home installation.
Configurable Digital Input and Output
The module includes one adjustable digital pin labelled IO3. This configurable I/O port operates with a 3.3V logic level, and the user can set it as a digital input or digital output according to the needs of the specific installation. The pin is used to connect external sensors or to send digital signals to other parts of the system. A GND terminal is also available as a reference ground for connected sensors or power.
System Integration
Connection to the base unit is via a dedicated hardware interface. For installation, you connect the extension module via a five-terminal connector that communicates with the main device. Optional power terminals labelled 5V and GND are used to power peripheral devices or the unit itself. These terminals function as a power output for connected peripherals or as a 5V supply for the base module.
Operating Conditions and Properties
The device operates in a normal environment with an ambient operating temperature of 0°C to 40°C and a storage temperature of -20°C to 40°C at 30% to 70% RH. The design, with a total weight of just 12g, boasts low power consumption under 0.6W. The black plastic housing protects the internal electronic circuits for operation at altitudes of up to 2,000m.
Compatible App:
Manufacturer's app
App Language:
In Czech, Slovak, English
Connection:
WiFi 2.4GHz
Power Supply:
Mains
Function:
Standalone
Expandability:
Open system
Dimensions:
36×31×11.5mm
Weight:
12g
Power Consumption:
< 0.6W
Specifications
Connection
Connectivity
Use
| Code: | Shell26046 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
| Manufacturer information |
Shelly Group LLc., : 51 Cherni Vrah Blvd., building 3, floor 2 and 3, 1407 Sofia, Bulgaria, [email protected] , +359 2 957 1249
|
