GIGABYTE Z890 EAGLE PLUS
GIGABYTE Z890 EAGLE PLUS
This GIGABYTE motherboard is built on the Intel Z890 chipset and has the Intel 1851 socket for the processor. Classically, it also has a sound card made for 8 channels. You can utilise a network connection module with the handy Wi-Fi connection support. It is a large motherboard for extremely powerful systems, which employ complex cooling and multiple cards. If you want to use this model, you will need a compatible ATX format PC case.
GIGABYTE Z890 EAGLE PLUS Motherboard Key Features
- Intel 1851 socket and Intel Z890 chipset
- GIGABYTE Z890 EAGLE PLUS size: ATX
- Integrated audio card for 8 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can hold 4 × dual-channel memory modules
GIGABYTE Z890 EAGLE PLUS Motherboard Connectivity
Computer RAM is indispensable, so this GIGABYTE motherboard is equipped with 4 RAM slots. You can use DDR5 type DIMM RAM. You can link them in dual-channel mode. The motherboard supports modules with a clock speed of up to 9466 MHz.
GIGABYTE Z890 EAGLE PLUS Connectors
This motherboard is ready to accommodate 3 graphics cards with PCI Express 16x slots. The internal interface also has a total of 4 popular M.2 slots. In terms of USB ports, it's got 4 × USB 2.0, 3 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports. You will also love that it has TPM for extra security, a dazzling RGB LED Header, and Thunderbolt
- The motherboard comes with an integrated Realtek ALC1220 sound card

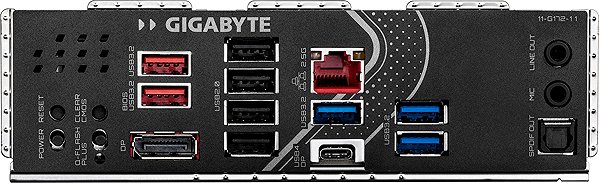

- External communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, S/PDIF , USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB 4 and DisplayPort 2.1
- Supported internal interfaces: RGB LED Header, Thunderbolt header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, Serial ATA III, M.2 PCIe 4.0 and ARGB LED Header
- Maximum supported RAM clock speed: 9466 MHz
- SATA III: 4 ×
Specifications
Socket and chipset
Format & functions
Memory
Advanced parameters
Connectors
Series
Compatibility
Colour
| Code: | AGz890e4 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
| Manufacturer information |
SIL Servis Partner a.s., Těšínská 1970/56, 710 00 Slezská Ostrava, Czech Republic, +420 552 301 141, [email protected] Gigabyte, founded in 1986, is an irreplaceable player in the field of computer components. They put great emphasis on key technologies and the strictest quality standards. The company produces a wide range of basic computer components such as motherboards and graphics cards, but also have many computer peripherals, laptops, tablets, desktops and even network solutions and servers on offer. Recently they also introduced a line of Gigabyte mobile phones.
|
