GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G

598.90 €

GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G

The GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G graphics card with 16 GB of RAM is exactly what you need, with a clock speed of 28000 MHz. With this amount of RAM, the 128Bit bus, and a core speed of 2235 MHz This graphics card has the PCI Express x16 5,0 interface, and it's got 4 ports for the connection of a screen. This graphics card has the DisplayPort 2,1b and HDMI 2,1b interface for the connection of a monitor. The active cooling on this graphics card delivers very low temperatures, even under load.

Graphics Card GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G ...
Graphics Card GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G ...

GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G Gaming Graphics Card Key Features

  • Graphics card has RTX 5060 Ti graphics chip with 4 nm production technology
  • GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G graphics card can accommodate 4 screens
  • Thermal design point: 180 W
  • Suggested minimum PSU performance: 650 W
  • Virtual reality support for tech enthusiasts
  • NVIDIA GeForce RTX 5060 Ti graphics card operating memory: 16 GB
  • Graphics card cooling technology: Active

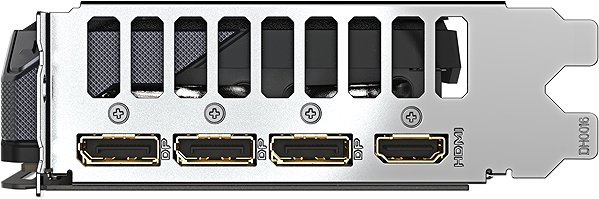

  • Graphics card display port: DisplayPort 2,1b and HDMI 2,1b

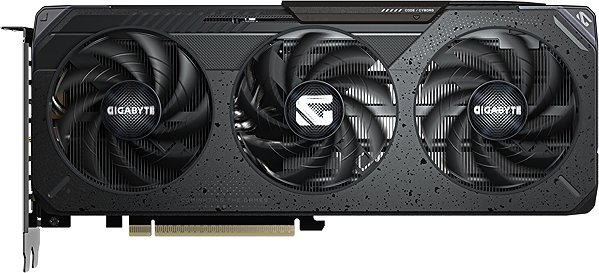

Active cooling, such as that, which is found in this graphics card, is often preferred mainly because it's a safe and proven way to keep the component temperature low. The Dual-slot cooling system on this graphics card features 3 fans and adjusts its cooling performance depending on the current load.

Graphics Card GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G ...

Specifications

Dimensions

Width 281 mm
Height 40 mm
Depth 119 mm

AI

Total number of TOPS 0

Chip

Chip manufacturer NVIDIA GeForce
Model designation RTX 5060 Ti
Graphics processor GB206
Chip architecture Blackwell
Number of stream processors 4,608×
Production technology 4 nm

Performance & usage

Use Game playing

Memory

VRAM capacity 16 GB
Memory type GDDR7
Bus width 128-Bit

Frequency

Core frequency 2,235 MHz
Core clock speed (Boost clock) 2,647 MHz
Memory frequency 28,000 MHz (28 GHz)
Effective memory clock (bandwidth) 28 Gbps

Interface

PC connection PCI Express x16 5.0
Bus interface PCIe 5.0 x8
Monitor connection DisplayPort 2.1b, HDMI 2.1b

Technology

Special graphics card features NVIDIA DLSS 4.0
DirectX version 12 Ultimate

Cooling system

Cooling type Active
Cooling size Dual-slot
number of fans 3 ×

Consumption

TDP 180 W
Code:  EGr56t16ga1
Warranty: 36 months
