EMOS Coaxial cable CB130, 20m
EMOS Coaxial cable CB130, 20m
The 20m coaxial cable EMOS CB130 is designed for indoor TV and satellite signal distribution. It operates with a standard impedance of 75 Ohm, which is typical for most antenna systems. Double shielding combining aluminium foil and braiding protects the conductor. A PVC outer sheath protects the cable's internal structure from mechanical damage. The cable is ideal for standard home installations and connecting terminal devices.
Key features of the EMOS CB130 coaxial cable (20m)
- Designed for indoor distribution
- Copper-clad steel (CCS) inner conductor
- Double shielding with aluminium foil and braiding
- Standard 75 Ohm impedance
- 28% shielding coverage
- 6.8mm diameter PVC outer sheath
- 20m length
Cable construction and shielding

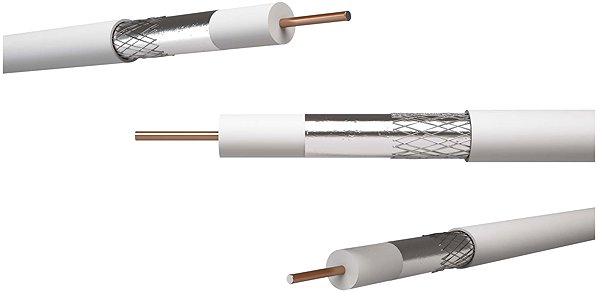

The core of the cable consists of a 1.02mm diameter copper-clad steel conductor (CCS). Double shielding protects the signal from interference. The first layer consists of aluminium foil (Al/PES), complemented by a braid of 32 aluminium wires with a diameter of 0.12mm. The total shielding coverage is 28%.
Sheath and application
A 6.8mm diameter PVC outer sheath protects the entire cable. The sheath material is tailored for indoor use, protecting the cable from mechanical wear. The EMOS CB130 cable is designed exclusively for indoor distribution. According to the CPR (Construction Products Regulation), the cable does not require classification regarding reaction to fire.
The manufacturer recommends using F compression connectors (*K7220) or F screw-on connectors (*K7331) to terminate the cable.
Specifications
Use
Male connectors
Connector
Cable construction
Features
Antenna cables
| Code: | HM410a26 |
| Warranty: | 24 months |
| Links: | Producer's Website: |
| Manufacturer information |
EMOS spol. s r.o., Lipnická 2844, Přerov, 75002, Czech Republic, +420 581 261 111, [email protected]
