Cooler Master MasterBox MB510L Red Trim

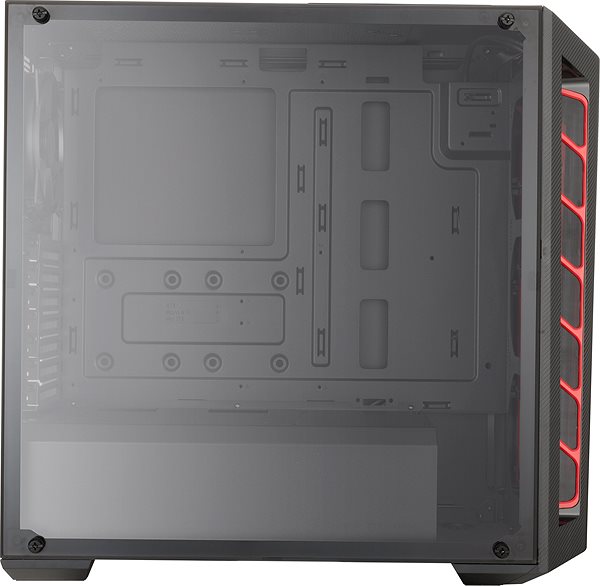

PC Case Cooler Master MasterBox MB510L Red Trim Lateral view

This Cooler Master MasterBox MB510L Red Trim Midi Tower PC case delivers a beautiful design dominated by a striking black colour tone. The paint coats a steel construction. The Midi Tower PC case is made for powerful PCs that can be placed under your desk where a Big Tower may not fit. Although it's a slightly scaled-down computer case, it can house most available gaming and professional hardware components. Discerning users will also enjoy the option to boost dissipation of heat using large cooling systems and fans that will slot in without an issue. The computer control panel, which serves to control and connect various peripherals, is located on the top of the case. You'll be able to put a ATX, mATX (Micro ATX) and mITX (Mini ITX) type motherboard into the Cooler Master MasterBox MB510L Red Trim PC case. The front of the case is perforated, allowing for better ventilation inside.

Cooler Master MasterBox MB510L Red Trim PC Case Key Features

  • Midi Tower computer case meant for powerful desktop computers
  • Can accommodate modern components alongside high-quality cooling
  • Black steel sophisticated body fitted with a transparent side panel
  • Cooler Master MasterBox MB510L Red Trim includes 6 fan slots
  • PC case featuring a perforated front
  • Front panel location: top

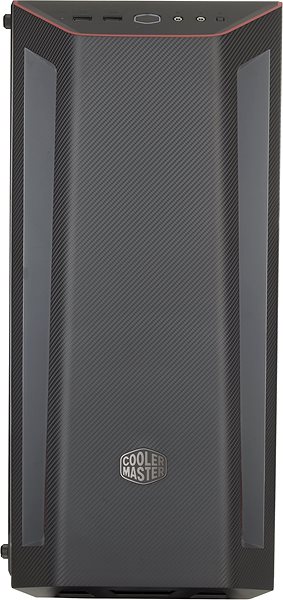

PC Case Cooler Master MasterBox MB510L Red Trim Screen

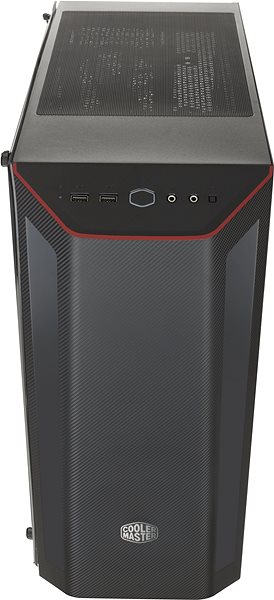

PC Case Cooler Master MasterBox MB510L Red Trim Connectivity (ports)

Cooler Master MasterBox MB510L Red Trim PC Case Hardware

6 x 2.5" solid state disk slots. All the remaining tech should be installed on the motherboard. There are connectors on the control panel that allow you to connect USB 3.2 Gen 1, headphones and microphone. The power supply of the Cooler Master PC case is located at the bottom, which means that it is not affected by higher temperatures, which mainly occur in the upper part of the case. The dust filters keep the PC case clean and prevent small particles from getting into the case.

Specifications

Usage and size

Size Midi Tower

Internal structure

Motherboard form factor ATX, mATX (Micro ATX), mITX (Mini ITX)
Number of internal 2.5" slots 6×
Number of internal 2.5"/3.5" slots 2 ×
Max. processor heat sink height 165 mm
Max. graphics card length 410 mm

External structure

Front panel connectors USB 3.2 Gen 1, 3.5mm jack (headphones), 3.5mm jack (microphone)
Sidewalls Transparent
Side panel material Plastic
Additional equipment Perforated front

PSU

Power supply Without power supply
Supported PSU format ATX

Cooling system

Front fan size 2x140mm, 3x120mm
Rear fan size 1x120mm
Top fan size 2x120mm, 2x140mm
Number of fan positions 6×
Number of mounted ventilators 1×120mm
Supported radiator size on top 120mm, 240mm
Supported radiator size from the front 120mm, 140mm, 240mm, 280mm, 360mm

Backlight

Backlight colour No backlighting

Material

Wardrobe material Steel

Dimensions

Width 217 mm (21.7 cm)
Height 468 mm (46.8 cm)
Depth 496 mm (49.6 cm)
Code:  CCmbmb510lrt
Links: Producer's Website:
