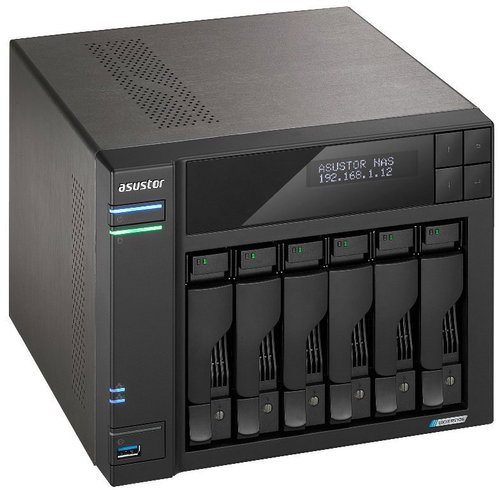

Asustor Lockerstor 6 Gen2+ AS6706T v2
Asustor Lockerstor 6 Gen2+ AS6706T v2
The Asustor Lockerstor 6 Gen2 NAS serves as a reliable hub for secure data storage, backup and sharing in both professional and home environments. The device supports the installation of up to six 2.5" or 3.5" hard drives or SSDs with a SATA interface and offers four dedicated slots for fast M.2 NVMe drives. This system is a hybrid storage solution, combining the high capacity of traditional hard drives with the speed of modern SSDs for efficient data handling.
Key features of the Asustor Lockerstor 6 Gen2 NAS
- Quad-core Intel Celeron N5105 processor with a frequency of up to 2.9GHz provides high computing performance
- Two 5Gb/s network ports for fast transfer of large data files
- Four M.2 NVMe SSD slots for effective read and write acceleration
- 8GB of DDR4 RAM, expandable up to 16GB
- Two 10Gb/s USB 3.2 Gen 2 ports shorten backup times to external media
- Integrated HDMI output supports direct 4K video playback
- Six-bay design supports secure RAID 5 and RAID 6 configurations
Computing performance with an Intel processor
At the heart of this network storage is a quad-core Intel Celeron N5105 processor, manufactured using 10nm technology. The processor's base frequency is 2GHz, automatically boosting to 2.9GHz when needed. The 8GB of DDR4 system RAM ensures the smooth running of all services and applications, and the capacity can be easily expanded to 16GB.
Fast network connectivity
The device is equipped with two 5Gb/s Ethernet ports, which enable efficient work with large files. With support for SMB Multichannel technology, you can achieve high read and write transfer speeds. For demanding users, an optional 10GbE expansion card is available, which can be installed in the integrated PCIe slot.
Acceleration with M.2 NVMe SSDs
The storage contains a total of four drive slots that connect via a PCIe 3.0 interface. These bays are used to create a fast cache or as a separate storage space for data access. The design allows for tool-free installation of SSDs, which simplifies the setup of the entire system.
Universal interface for connecting peripherals
The device features two high-speed USB 3.2 Gen 2 ports with a transfer rate of 10Gb/s. These connectors are used for fast data backups from external hard drives or flash drives. For connecting printers, UPS backup power supplies or a keyboard, the manufacturer has included one classic USB 2.0 port, saving the high-speed ports for data transfers.
Multimedia features
The integrated graphics chip supports hardware decoding of 10-bit 4K H.265 media. You can play multimedia content directly via the built-in HDMI output to a TV or monitor. The system offers support for applications like LooksGood or SoundsGood for easy management and streaming of films, photos and music.
Comprehensive security and reliable operation
The Linux-based ADM operating system provides protection against external threats, including ransomware. There is a built-in firewall, ClamAV antivirus, two-factor authentication and AES 256-bit folder encryption. Reliable cooling of all components efficiently dissipates heat from the hard drives and installed M.2 SSD modules, maintaining an optimal operating temperature even under continuous load.
Processor:
Intel Celeron N5105
Memory type:
DDR4
Maximum HDD capacity:
32TB
Power supply performance:
250W
Specifications
Use
Storage
Performance
Software and services
Power Supply
Interface
Features and functions
Consumption
Dimensions and weight
Package contents
| Code: | Asust26005 |
| Warranty: | 36 months |
| Links: | Producer's Website: |
