AlzaErgo M325B Convey XL Articulated 60"-100"

80.90 €

AlzaErgo M325B Convey XL Articulated 60"-100"

Premium mount for a better TV experience

Our articulating TV mount gives you virtually unlimited possibilities. The AlzaErgo M325B Convey XL lets you tilt the TV up and down by 20° and swivel it 90° to the sides for maximum flexibility.

AlzaErgo M325B Convey XL

Alternative text for photo is missing!

Everything you need
in the box

We have included everything required for a hassle-free installation in the package – a manual, mounting kit with spacers, and Fischer wall plugs.
AlzaErgo M325B Convey XL

Which TV sizes
can you mount?

The AlzaErgo Convey XL mount is compatible with flat and curved TVs from 60–100" with a maximum weight of 80kg. You will also appreciate the cable management system.

AlzaErgo M325B Convey XL

Alternative text for photo is missing!

AlzaErgo product family

We designed AlzaErgo products to meet the highest standards, helping you work and relax in a healthier and more comfortable way. We guarantee top-tier quality for every single AlzaErgo product.

AlzaErgo M325B Convey XL

Technical
specification

  • Simple construction for easy installation
  • Tilting and swivelling design offers multiple viewing angles
  • Exceptional load capacity
  • Suitable for most 60–100" TVs up to 80kg
  • All-in-one packaging contains everything needed for installation
  • Cable management system keeps cables organised
  • Suitable for curved TVs
  • Material: steel
  • Surface finish: powder coating

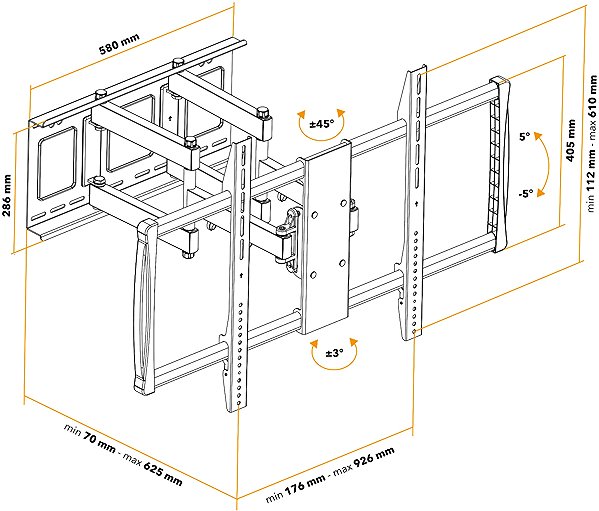

  • Dimensions: 625×1050×630mm

Specifications

Colour

Colour Black

Type

Usage Wall-mounted
Construction Articulated
Suitable for installation into Walls, Column, Concrete, Bricks, Wooden beams
VESA mounting 200×200, 300×300, 400×200, 400×400, 600×400, 600×500, 600×600, 800×400, 800×600, 900×600
Min. TV diagonal 60 "
Max. TV diagonal 100 "

Features

Min. distance from wall 7 cm
Max. distance from wall 62.5 cm
Tilt + 5° / - 15°
Tilt 90 °
Rotation 6 °
Max. load capacity 80 kg
Width of installation plate 580 mm

Equipment

Equipment Cable management system, FISCHER wall plugs
TV screws included M5×14, M6×14, M6×30, M8×30, M8×50
Wall screws included ST6,3×55
Anchors included SX10×50
Needed for assembly Screwdriver, Pencil, spirit level, Cable detector, Drill (depending on installation method)

Holder weight

Holder weight 14 kg
Code:  AEY0965c
Warranty: 36 months
